Product Description
Chip built-in 16-bit AD converter, 16-bit data output.
I2C Digital output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
Selectable Solder Jumpers on CLK, FSYNC, and AD0.
Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
Digital-output temperature sensor.
General Specification of Axis Gyro 6DOF
Driver IC MPU-6050
Operating Voltage (VDC) 3 ~ 5
Communication I2C Protocol
Gyro range(°/s) ± 250, 500, 1000, 2000
Acceleration range(g) ± 2 ± 4 ± 8 ± 16
Length: 20mm
Width: 16mm
Shipment Weight 0.01 kg
Shipment Dimensions 3 × 2 × 1 cm
Package Includes:

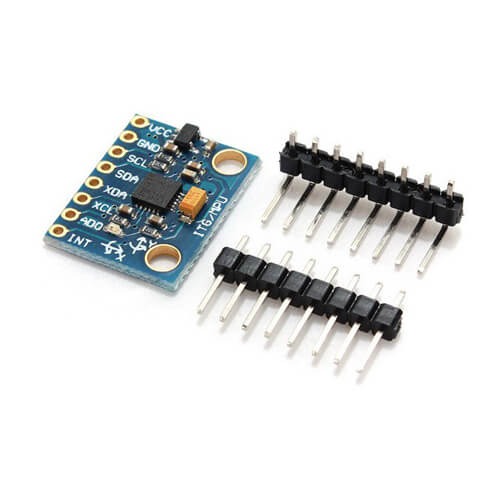

1 x 6DOF MPU 6050 3-Axis Gyro
