Product Description
High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
General Specification
Model MG90S
Weight(gm) 13
Operating Voltage (VDC) 4.8 ~ 6.6
Operating Speed @4.8V 0.10sec/60°
Operating Speed @6.6V 0.08sec/60°
Stall Torque @ 4.8V (Kg-Cm) 1.8
Stall Torque @6.6V (Kg-Cm) 2.2
Operating Temperature (°C) 0 to 55
Dead Band Width ( μs) 1
Rotational Degree 180º
Servo Plug JR
Cable Length (cm) 25
Length (mm) 12.4
Width (mm) 22.8
Height (mm) 32.5
Shipment Weight 0.017 kg
Shipment Dimensions 8 × 6 × 3 cm

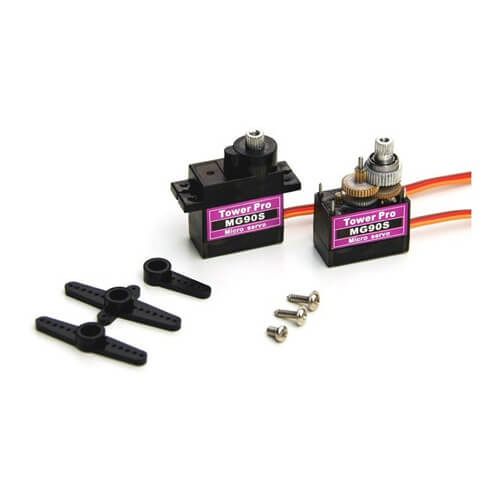

Package Includes :
1 x Towerpro MG90S Mini Digital 180-Degree Servo
Set of Horns
One Point
Two Point
Four Point
1 x Set of Screws
