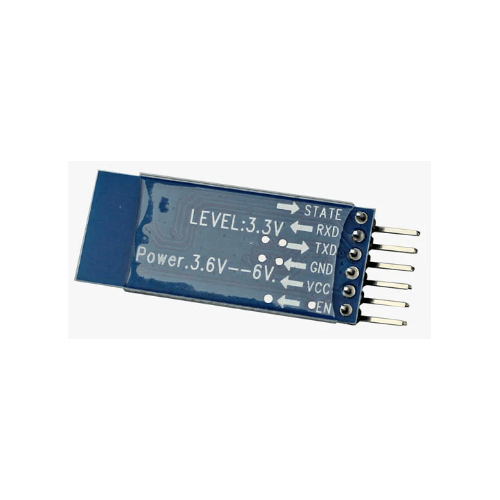

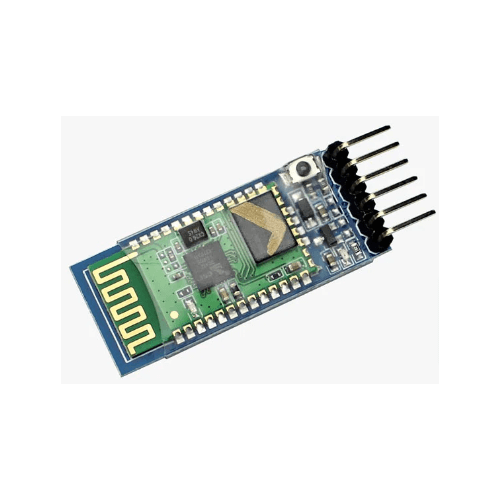

Arduino Bluetooth Module HC-05 Arduino Bluetooth Module HC-05
Arduino Bluetooth Module HC-05

Arduino Bluetooth Module HC-05

Price: ৳320.0

Key Features

  • Arduino Bluetooth Module HC-05
  • Bases at CSR BC04 Bluetooth technology.
  • with build-in 2.4GHz PCB antenna
  • It’s at the Bluetooth class 2 power level.
  • Range test: 10 meters
  • Operating voltage: 3.3V to 6V DC
  • The operating current in pairing is in the range of 30~40mA.
Quantity:
or
SHARE

Product Description


The IoT-enabled projects require two-way communication between the microcontroller and various sensors. There are various methods you can do that, Wired Communication, WiFi, and Bluetooth are some of them. The HC-05 Bluetooth Module adds wireless communication to your project to communicate via Bluetooth to any Bluetooth-enabled Laptop or Mobile Device. The module communicates at a 9600 baud rate via USART protocol. It can be used in applications like communication between two microcontrollers, data logging, wireless robots, wireless sensors data acquisition, and home automation.

Specification of Bluetooth Module HC-05

Profiles: Bluetooth serial port Profile

Dimension: 26.9mm x 13mm x 2.2 mm

Bluetooth protocol: Bluetooth Specification v2.0+EDR

Frequency: 2.4GHz ISM band, Range

Modulation: GFSK (Gaussian Frequency Shift Keying)

Sensitivity: -84dBm at 0.1% BER

Speed: Asynchronous: 2.1Mbpsmax / 160 kbps, Synchronous: 1Mbps/1Mbps

Emission power: 4dBm, Class 2

Power supply: +3.3V, 50mA

Security: Authentication and encryption

Working temperature: -20°C to +75°C

The module has two operating modes Data mode and Command Mode. To connect it with your Arduino or Raspberry Pi connect the TX and RX pins to the controller and power the device with a VCC pin connected to a 5V pin. While in data mode it can send or receive data from other Bluetooth devices and in command mode it will change default device settings.

PACKAGE CONTENTS
1×HC-05 Bluetooth Module
