Product Description
Indicator light: a green one for the switch, a red one for power.
Built-in a potentiometer for sensitivity control.
Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO.
Can detect fire or wavelength in 760 ~ 1100 nm nano within the scope of the light source.
The detection angle is about 60 degrees, and the flame spectrum is especially sensitive.
The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.

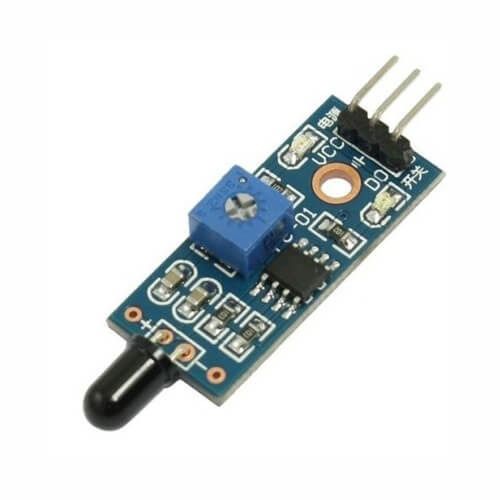

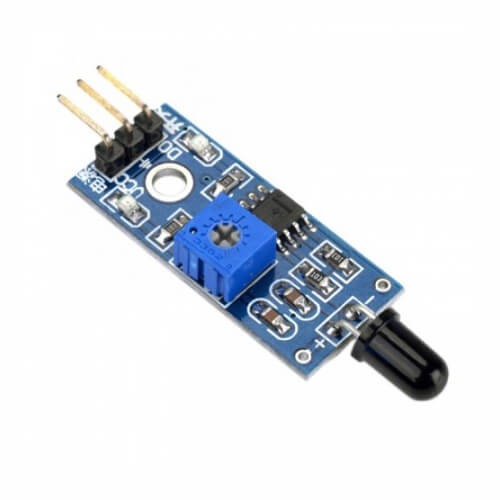

Arduino Flame Sensor / Fire Detection Module
Output Channel: 1
Operating Voltage (VDC): 3.3 ~ 5
Mounting Hole(mm): 3
Length: 32mm x Width: 14mm
Made in China
General Specification
Output Channel: 1
Operating Voltage (VDC): 3.3 ~ 5
Mounting Hole(mm): 3
Length (mm): 32
Width (mm): 14
Weight (gm): 3
Shipment Weight: 0.005 kg
Shipment Dimensions: 4 × 2.5 × 2 cm
Made in China
